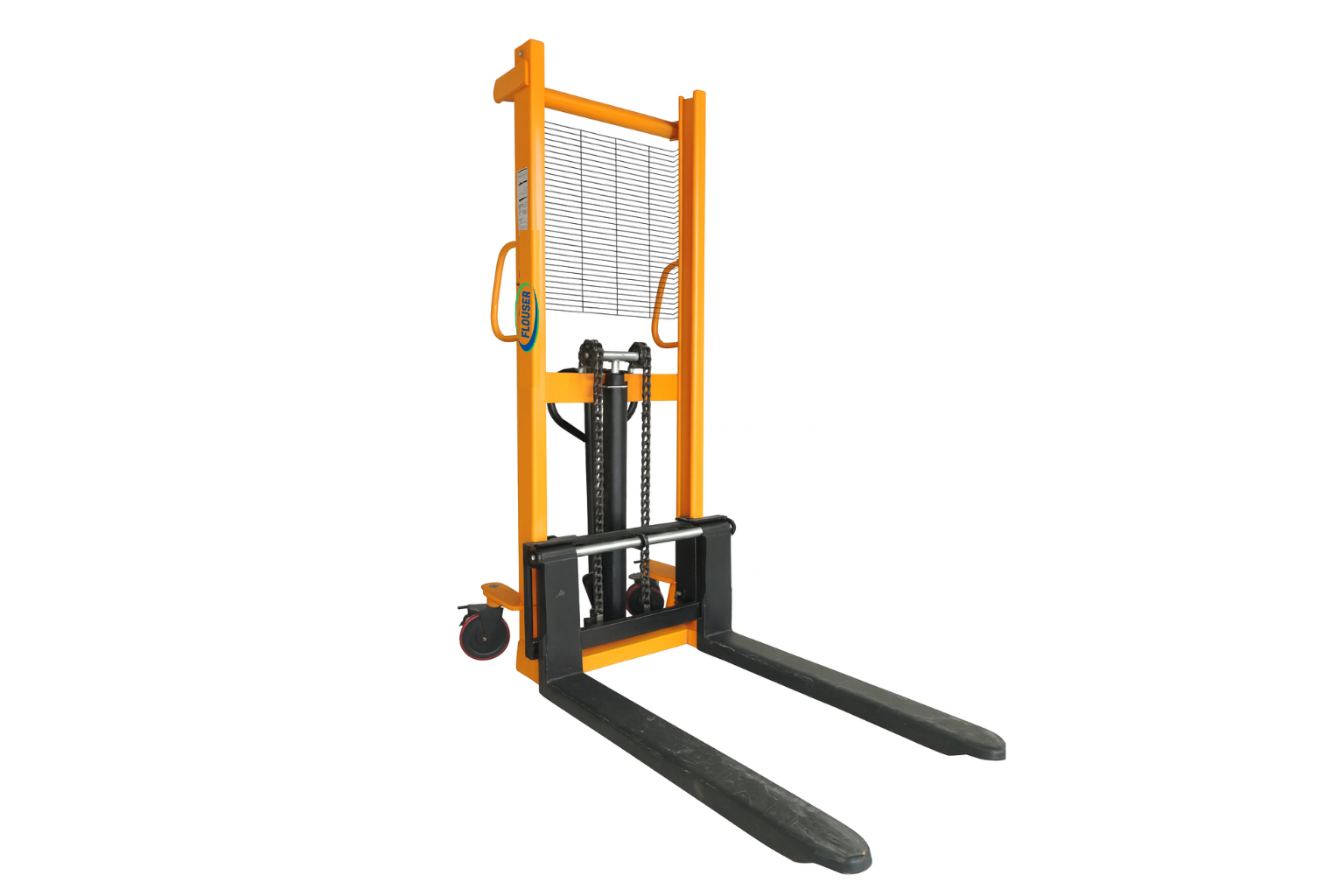

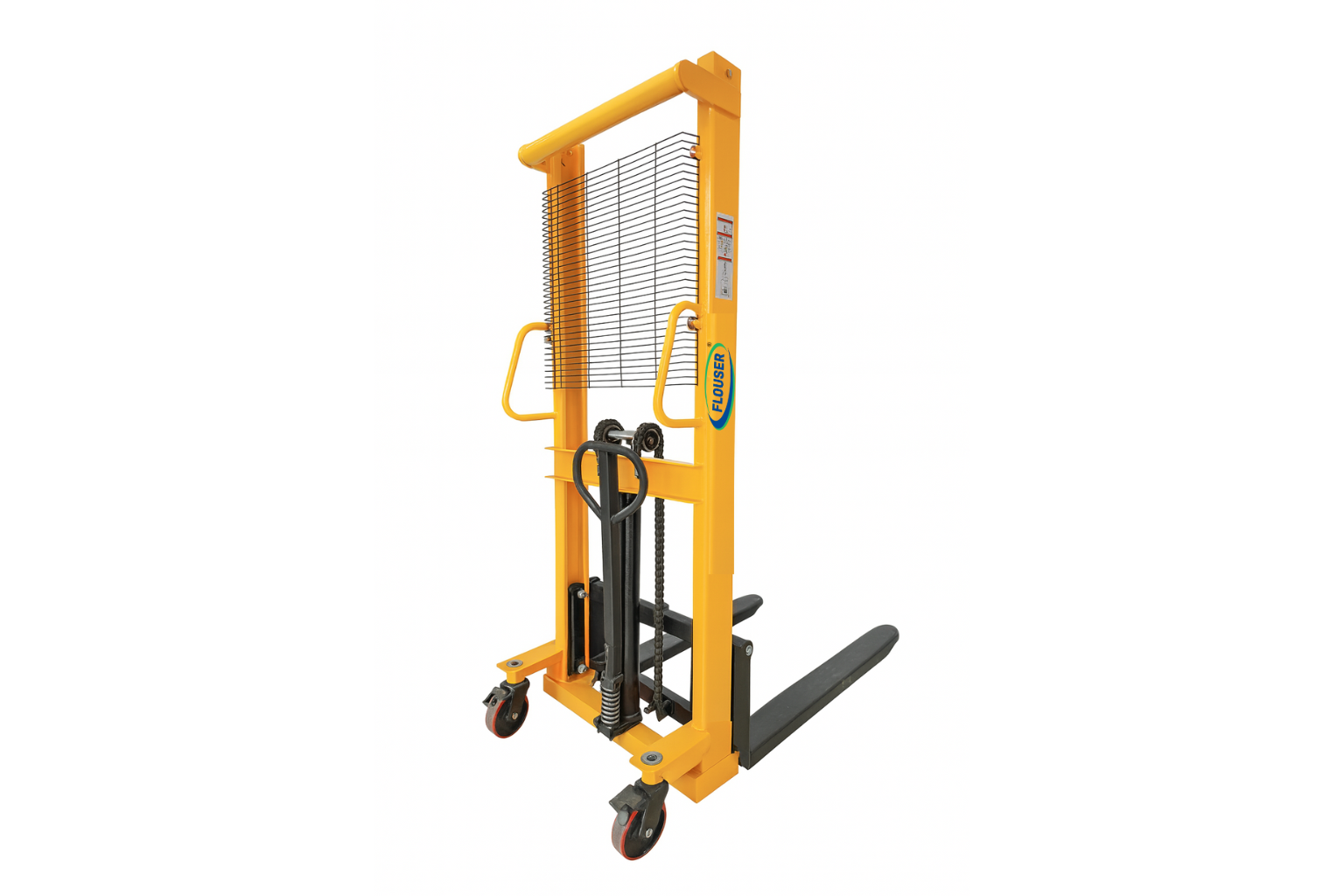

HAND OPERATED HYDRAULIC STACKER
Rugged stacker for safe pallet lifting and stacking with manual travel and hydraulic lift. Ideal for warehouses, fabrication shops and line-side handling where precise, low-maintenance lifting is required.
- Capacities: 1000 / 1500 / 2000 kg
- Lift heights: 1600 / 2000 / 2500 / 3000 mm
- Fork size: 1150 (L) × 820 (W) mm
- Heavy-duty pump, foot/hand lift, robust chassis & safety valves
Available Variants & Specifications
| S.No. | Item | Capacity (KG) | Lifting Height (MM) | Fork Length (MM) | Fork Width (MM) |
|---|---|---|---|---|---|
| 1 | Hand Operated Hydraulic Stacker | 1000 | 1600 | 1150 | 820 |
| 2 | Hand Operated Hydraulic Stacker | 1000 | 2000 | 1150 | 820 |
| 3 | Hand Operated Hydraulic Stacker | 1000 | 2500 | 1150 | 820 |
| 4 | Hand Operated Hydraulic Stacker | 1000 | 3000 | 1150 | 820 |
| 5 | Hand Operated Hydraulic Stacker | 1500 | 1600 | 1150 | 820 |
| 6 | Hand Operated Hydraulic Stacker | 1500 | 2000 | 1150 | 820 |
| 7 | Hand Operated Hydraulic Stacker | 1500 | 2500 | 1150 | 820 |
| 8 | Hand Operated Hydraulic Stacker | 1500 | 3000 | 1150 | 820 |
| 9 | Hand Operated Hydraulic Stacker | 2000 | 1600 | 1150 | 820 |
SEMI-ELECTRIC STACKER
Manual travel, electric lifting. Built for higher throughput with push-button lifting, maintenance-free battery/charger pack and industrial drive components. Perfect for loading bays, production cells and warehousing where fast, effortless lifting cuts cycle time.
- Electric lift with emergency stop & overload protection
- On-board smart charger; battery status display
- Adjustable forks / straddle options available
- Safety mesh guard, toe-guards, parking brake
Key Specifications
| S.No. | Item | Capacity (KG) | Lifting Height (MM) | Fork Length (MM) | Fork Width (MM) |
|---|---|---|---|---|---|
| 1 | Semi-Electric Stacker | 1000 | 1600 | 1150 | 680–820 |
| 2 | Semi-Electric Stacker | 1500 | 2000 | 1150 | 680–820 |
| 3 | Semi-Electric Stacker | 1500 | 3000 | 1150 | 680–820 |
